Flat Steel Heald

Riderless Flat Heald

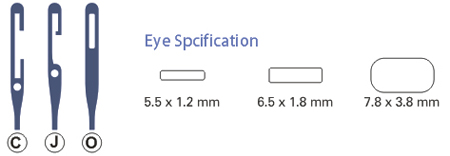

We offer wide range of riderless flat healds for modern machines ensuring accurate weaving. The riderless flat healds are mainly identified by their end loops:

  • "C" shaped ends are suitable for heald carrying rods of size 22 x 1.7mm
  • "J" shaped ends are suitable for heald carrying rods of size 16 x 2.1mm
  • "O" shaped ends are suitable for heald carrying rods of size 9 x 1.5mm

The performance of heald is largely dependant upon the quality of material and their super finishing. These healds are quite suitable for high speed machines without any breakages or yarn abrasion. We can also supply healds with imported steel (Stainless Steel [INOX]) strips as per the specification or sample.

The threaded eye is made super smooth and polished for easy and perfect weaving of fabric. Simplex and duplex type flat steel healds are supplied with threaded eye in centre and off centre as per requirement of the customer. We can also supply special or any other type of heald as per specification or sample.

We also provide the product as per your requirements and desired configuration.

End Loops Type Length Section(mm) Eye(mm)
C Simplex 280
331
382
5.5 x 0.30 5.5 x 1.2
6.5 x 1.8
7.8 x 3.8
J Simplex 280
331
382
5.5 x 0.30 5.5 x 1.2
6.5 x 1.8
7.8 x 3.8
O Simplex 280
331
5.5 x 0.30 5.5 x 1.2
6.5 x 1.8
C Duplex 280
331
382
5.5 x 0.30 5.5 x 1.2
J Duplex 280
331
382
5.5 x 0.30 5.5 x 1.2
O Duplex 331 5.5 x 0.30 5.5 x 1.2
